L-6B



Features
◎ Mainly used in conference rooms, theaters, multifunctional halls, nightclubs, slow rocking bars, church style stadiums (indoor sound reinforcement occasions with less than 600 people) in conjunction with line array L6 full frequency speakers.

◎ The addition of L6B to the L-6 linear array makes the visual effect of the entire linear array system more coordinated and perfect. At the same time, the performance of the entire line array in various frequency bands is becoming more perfect, with rich low-frequency wine, transparent and bright high notes, and the entire sound field becoming fuller.

◎ The box adopts 18MM plywood to improve structural strength, and this system adopts a 3-point lifting, which is firm and safe. Professional design of aluminum alloy fast lifting structure provides a simple, fast, stable, and safe lifting method for fixed installation and mobile performance. Combined with full frequency L-6, it can be combined into 2+1, 4+1, 6+2 and other configuration methods.

Specifications

System type:

1×15passive line array bass

Frequency range:

35Hz - 300Hz(±3dB)

Power:

500W(RMS)

Sensitivity (1Watts@1m):

98dB

SPL:

Continuous: 126dB,Peak : 131dB

Nominal impedance:

8Ω

LF Transducer:

1×15woofer/4voice coil

Enclosure material :

18mm birch plywood

Finish:

Black dot paint

Grill:

Rust resistant steel mesh

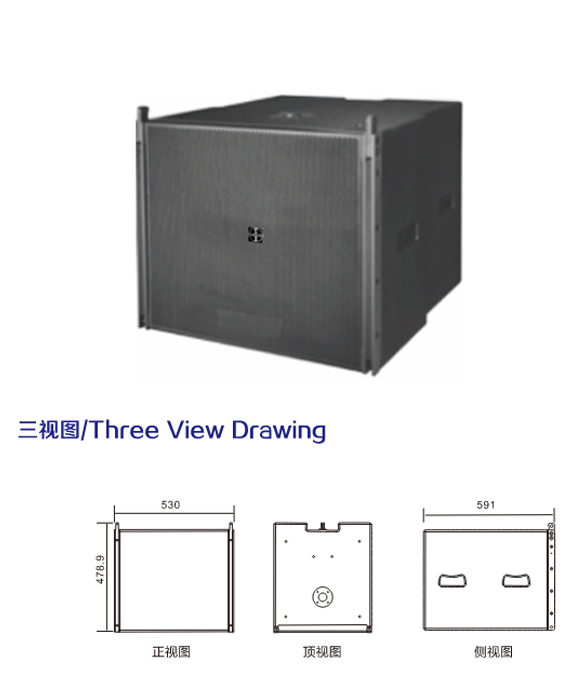

Dimensions(W×H×D):

530×478.9×591mm

NW:

36.5kg
