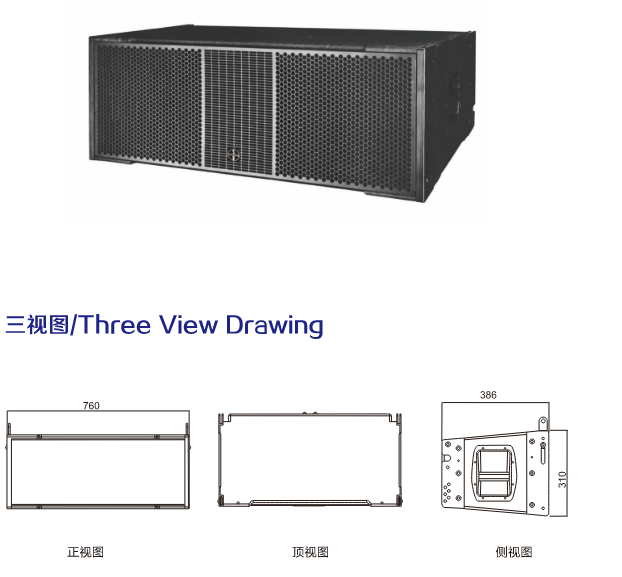

L-8/L-8WP

Features

◎ The L-8 line array speaker is a small 2-way full range system. Provide a frequency range of 60Hz-20KHz, with smooth frequency and phase response. One piece 75mm voice coil compression unit and two pieces 8 "high power woofer units form a highly dynamic combination, providing extremely high sound pressure with the smallest volume and lightest weight.

◎ The medium and low frequency parts of L-8 use a pair of 300W 8 " woofer units, which are driven separately. The high frequency part uses a 75mm voice coil compression unit, which is combined with 90°horizontal constant pointing horn to produce a consistent wavefront. The 75mm compression unit with a sensitivity of up to 110dB enables the L-8 tiny box to produce a peak sound pressure output of up to 103dB.

◎ The box of L-8 is trapezoidal, and the gap between the box and the box has been minimized, there by reducing the ineffective sound area of the entire array. The adjustable angle of each box is 0°-10°, and it can be adjusted every 2 degree. The hanging components are all made of T6 heat treated 6061 aluminum material, which reduces the weight of the speaker while also having sufficient strength. When hanging 12 speakers, the hanging components have a safety factor of 7:1. The box is composed of 18mm plywood panels, with a wear-resistant black dot pattern waterproof paint on the surface. Two flush embedded handles are installed on both sides of the speaker for easy handling. Two rear wiring boards (input output power sockets, two (input output) are connected to the bass signal, and two (input output) are connected to the tweeter signal. Black perforated iron mesh protects the speaker unit, with rainproof mesh inside the iron mesh.

Specifications
