NF-1815M
Features
◎ This speaker is a 15 inch two way speaker, which is specially used for various performance activities. Its characteristics are: high pitch transparent, Delicate, wide coverage angle, and powerful low-frequency; The low frequency adopts a φ100mm Voice coil, φ220mm magnet magnet design, ensuring sufficient power and loud pressure
Level performance; It can also meet various return needs for performance occasions:
◎ A full frequency speaker consisting of a 15 inch low frequency drive unit and a 3” compressed drive tweeter unit with two frequencies:
◎ Suitable for multi-functional fixed installation and large-scale mobile performances, used for high-quality music playback( big stage monitor indoor& outdoor) , combined with subwoofer speakers.
|
Model type: |
2-way 1×15”full range speaker |
|
Frequency range: |
50Hz-20KHz(±3dB) |
|
Coverage（H×V）: |
100°×70° |
|
Rated power: |
600W(RMS)/1200w(Peak) |
|
Sensitivity (1Watts@1m): |
98dB |
|
SPL: |
Continuous: 127dB,Peak :133dB |
|
Nominal impedance: |
8Ω |
|
LF Transducer: |
1×15”woofer/4”voice coil |
|
HF Transducer: |
1×1''throat/3”voice coil |
|
Connection: |
2*NL4 1+、1- |
|
Enclosure material: |
18mm birch plywood |
|
Finish: |
dot paint/waterproof polyurea paint |
|
Grill: |
steel with anti-corrosion coating |
|

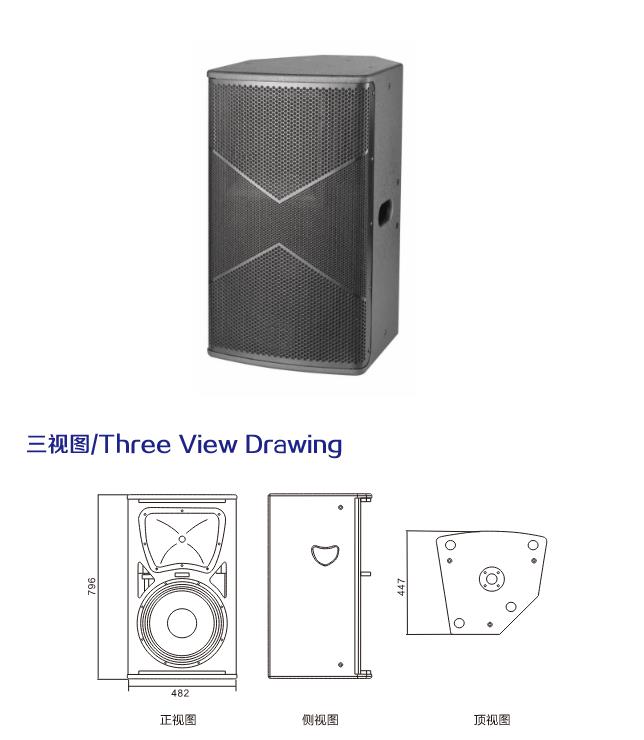

Dimensions(W×H×D): |
482×796×447mm |
|
NW: |
32kg |
-
