Position : Home>Product Details>NF Dancing and Performing Arts Series

NF-1836



Features

◎ The NF-1836 Long throw speaker has super strong directional components and astonishing sound pressure levels. The precise pointing performance easily controls the uniformity of the sound field in the entire listening area, effectively avoiding sound interference. The high-frequency adopts a 3-inch voice coil driven compression unit, which has high sound pressure, clear hierarchy, and instant response. The low-frequency adopts high-quality units with 100 cores, which are strong in low-frequency, deep in diving, low in distortion, thick and elastic in low-frequency.


◎
The unique heat dissipation function design can quickly dissipate the heat generated by the voice coil, ensuring stable operation of the unit under long-term and dynamic conditions.


◎
The speaker box is made of sturdy birch plywood and wear-resistant surface coating, allowing users or rental companies to achieve astonishing sound pressure levels and dynamics without the need for complex installation and wiring, as well as a large number of combinations. The mid frequency performance is relatively prominent, with clear and transparent mid frequency, and thick and elastic low frequency. Essential products for multifunctional halls and various types of mobile performances;

Specification

◎
Suitable for theaters, auditoriums, sports venues, banquet halls, conference rooms, lecture halls, multifunctional halls, medium-sized indoor and outdoor performances, churches, large

Performance sound reinforcement, clubs, nightclubs, sports venues, and other occasions.


Model type:

2-way 2×15full range speaker

Frequency range:

50Hz-20KHz(±3dB)

CoverageH×V:

100°×55°

Rated power:

1500W(RMS)/3000w(Peak)

Sensitivity (1Watts@1m):

110dB

SPL:

Continuous: 140dB,Peak :146dB

Nominal impedance:

8Ω

LF Transducer:

2×15woofer/4voice coil

HF Transducer:

1×1.5''throat/3voice coil

Connection:

2*NL4 1+1-

Enclosure material:

18mm birch plywood

Finish:

dot paint/waterproof polyurea paint

Grill:

steel with anti-corrosion coating

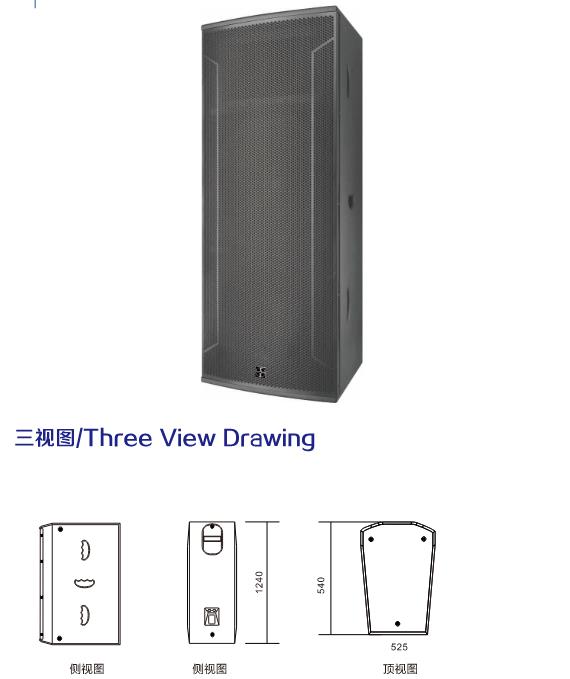

Dimensions(W×H×D):

525×1240×540mm

NW:

83 kg
