Model type:

2-way 1×12”full range line array

Frequency range:

56Hz-18KHz(±3dB)

Coverage（H×V）:

80°×10°the configuration of the linear array

Rated power :

HF:120W/ HF:500W

Sensitivity (1Watts@1m):

HF:105dB/ LF:98dB

SPL:

HF:Continuous: 130dB,Peak :136dB

LF:Continuous: 124dB,Peak :130dB

Nominal impedance:

8Ω

LF Transducer:

1×12”woofer/3”voice coil

HF Transducer:

1×1.4''throat/3”voice coil

Connection:

2*NL4 , 1+、1- (LF),2+,2-(HF)

Enclosure material :

18mm birch plywood

Finish:

Black dot paint/waterproof polyurea paint

Grill:

Black steel with anti-corrosion coating

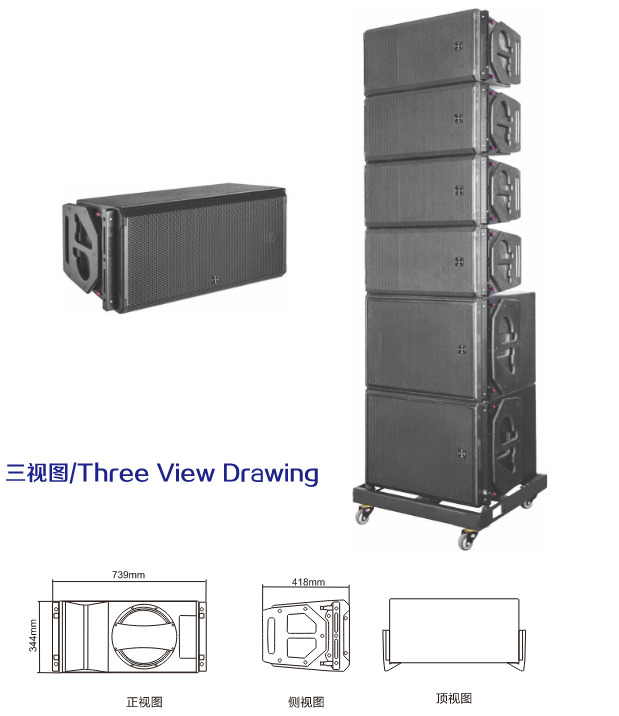

Dimensions(W×H×D):

344×740×419mm

NW:

32kg
