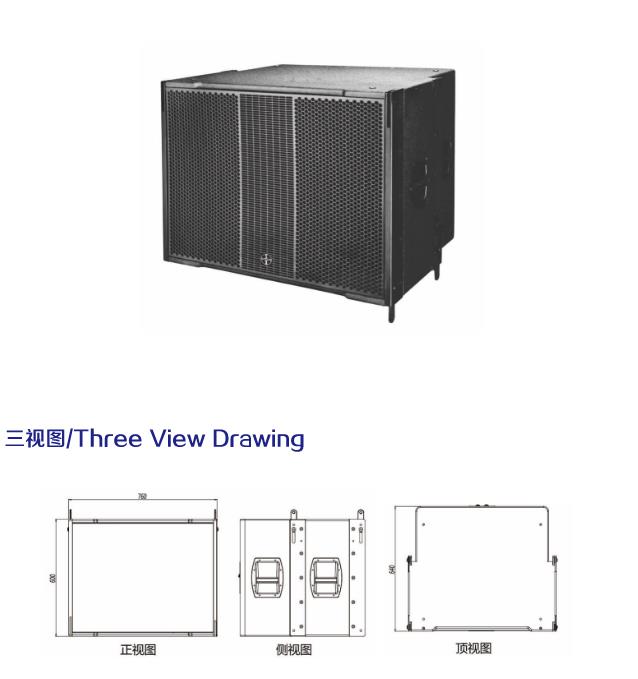

L-210B



Features

◎ Together with the full frequency line array speaker, it is hung in groups to form a line array, with a width consistent with the full frequency box. It is compact in size, compact in structure, lightweight, and easy to connect and install, providing a wider low-frequency response for the system. It is one of the optional speakers for the L-series line array. Especially suitable for low-frequency supplementary use in outdoor mobile performances.



◎ Professional design of aluminum alloy fast lifting structure provides a simple, fast, stable, and safe lifting method for fixed installation and mobile performance. Combined with full frequency L-210, it can be combined into 2+1, 4+1, 6+2, 8+2 and other matching methods.


◎
Suitable for mobile indoor or outdoor performances, conference centers, small theaters, theaters, performance halls, dance halls, auditoriums, multifunctional halls, banquet halls, sports venues (used in conjunction with line array full frequency speakers)
.

Specifications

System type:

1×18passive line array bass

Frequency range:

35Hz-300Hz(±3dB)

Power :

600W(RMS)

Sensitivity (1Watts@1m):

100dB

SPL:

Continuous:128dB,Peak :134dB

Nominal impedance:

8Ω

LF Transducer:

1×18woofer/4voice coil

Enclosure material :

18mm birch plywood

Finish:

dot anti paint pattern/Waterproof polyurea paint

Grill:

Black steel with anti-corrosion coating

Connection :

2×NL4 1+,1-

Dimensions(W×H×D):

760×600×640mm

NW:

60kg
