Position : Home>Product Details>Y Conference Series

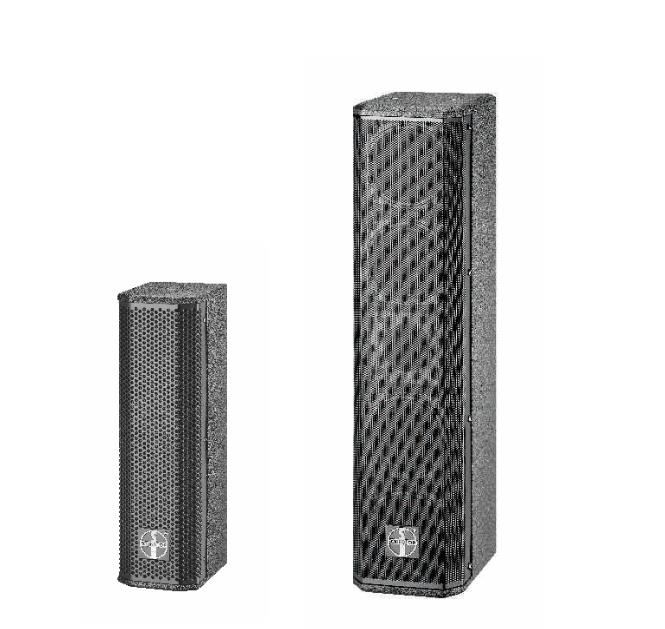

Y-304/Y-404


Features


◎
The Y-series broadband linear sound column speaker is a product developed specifically for conference equipment, background sound reinforcement, and other occasions. Adopting a flexible box structure, it can be hung horizontally or vertically, with a slim and slender appearance, and can also be used for central sound compensation. The box is equipped with high-performance speakers for single sound clarity and transparency, mainly reflecting the mid frequency vocal range of the human voice. In terms of musical expression ability, with clear and bright frequencies. The frequency range covers the frequency range of 60Hz to 20KHz, which can fully meet the playback effect of music.


Specification

Model:

Y-304

Y-404

System Type:

2-way 4×3.5'' column speaker

2-way 4×4.5'' column speaker

Frequency response:

100Hz-20KHz(-10dB)

60Hz-20KHz(-10dB)

LF Transducer:

4×3.5woofer/1voice coil

4×3.5woofer/1voice coil

HF Transducer:

/

25mm

Sensitivity(1W@1m):

98dB

99dB

Power:

200W(RMS),400W(PEAK)

300W(RMS),600W(PEAK)

Nominal Impedance:

8Ω

8Ω

Peak sound pressure level:

128dB

128dB

Coverage angle(H×V):

120°×90°

120°×90°

Connection:

Red + Black -

Red + Black - ,1x NK4

Dimensions:

108×138×37mm

138×168×602mm

NW:

3kg

5kg
