Features
◎ Professional single 5-inch/single 6-inch/single 8-inch coaxial speakers, suitable for high-end conference sound reinforcement and replenishment use. Both high and low frequencies are made of magneto aerospace materials, with strong high-frequency penetration and outstanding vocals.
◎ Ordinary full frequency speakers are usually composed of high-frequency and low-frequency parts, arranged horizontally. When used with other types of speakers to form a sound field, multiple point sound sources will be formed. Due to the different distances between each speaker and the corresponding audience, the sound source will form serious sound interference in the horizontal direction, resulting in comb filtering effect and slight differences in sound consistency. The high-frequency and low-frequency performance of coaxial speakers on the same magnetic steel only forms a single point sound source, avoiding horizontal interference, reducing the influence of rate filtering, and having good horizontal coverage effect. Directionality 90 ° x90 °, with high output and low distortion characteristics.
Specification
|

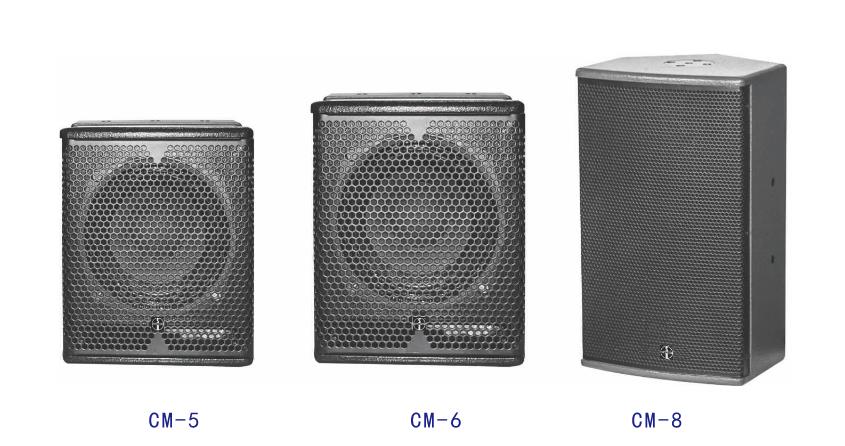

Model: |
CM-5 |
CM-6 |
CM-8 |
|
rated power: |
100W |
150W |
280W |
|
Frequency response: |
100Hz-20KHz |
100Hz-20KHz |
65-20KHz |
|
SPL: |
114dB |
114dB |
136dB |
|
Coverage angle: |
100°conical |
100°conical |
100°conical |
|
High frequency compression driver: |
Voice coil 25mm |
Voice coil 30mm |
Voice coil 44mm |
|
Low-frequency unit: |
5”Voice coil 38mm |
6”Voice coil 38mm |
8”Voice coil 50mm |
|
Nominal Impedance: |
8Ω |
8Ω |
8Ω |
|
Connectors: |
Phoenix 4-hole straight insertion |
Phoenix 4-hole straight insertion |
2XNL4 |
|
Dimensions(W×H×D): |
163×169×198mm |
173×179×208mm |
250×420×237mm |
|
NW: |
3kg |
4kg |
10kg |
