Features

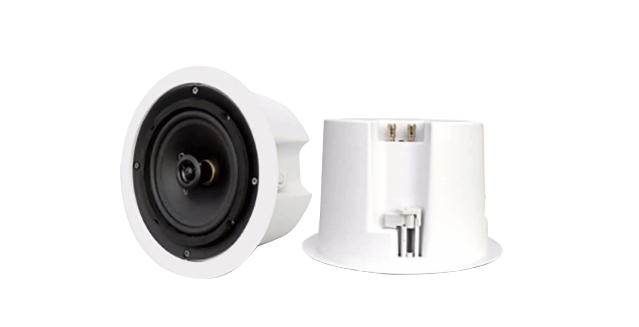

◎ A high-power coaxial ceiling speaker with diverse functions can achieve free switching under constant voltage and resistance conditions. When switching to constant resistance mode, the impedance series of the adjustable units can be adjusted to achieve 80/40 mutual switching. The power size can also be adjusted by the rear knob to facilitate the use of different types of amplifiers, and multiple amplifiers can be used in series.
◎ This series of products has the characteristics of high power, clear and bright medium and high frequencies; During the hanging installation process, the product's built-in column shaped pressure bar is used for fixation, and an additional hanging ring buckle is installed at the bottom of the metal shell to facilitate the use of steel wire rope string pulling and lifting in the environment of the suspended ceiling building, ensuring the safety and stability after installation.
◎ The structure of the coaxial unit allows the tweeter to switch between different angles, and after adjustment, it can maintain constant direction towards specific areas. The high sensitivity is 90 ± 2dB, fully ensuring the clarity and sweetness of the sound in language reinforcement.
Specification
Model: |
IC-5 |
IC-6 |
IC-8 |
Rated power: |
20W |
30W |
40W |
Power selection: |
2.5/5/10/20W/8Ω |
30/15/7.5/3.8W/8Ω |
40/20/10/5W/8Ω |
Voltage: |
100V/70V |
100V/70V |
100V/70V |
Sensitivity(1Watts@1m): |
88dB |
89dB |
90dB |
Frequency response: |
100-20KHz |
90-20KHz |
50-20KHz |
Dimensions: |
213×130mm |
240×155mm |
280×190mm |
Opening size: |
180mm |
210mm |
250mm |
Material: |
ABS |
ABS |
ABS |
weight: |
1.5kg |
2.2kg |
2.8kg |
