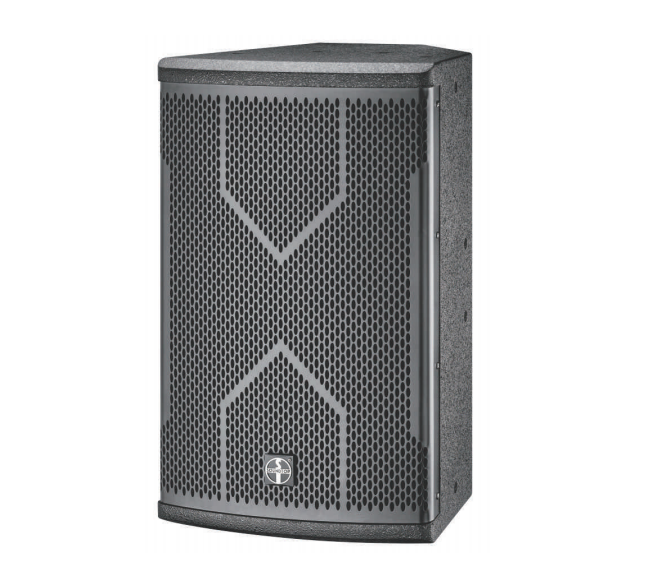

ES-610 Full-range speaker

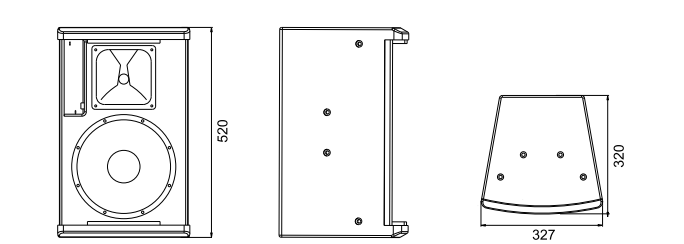

Layout：

Product features：

◎ Small and medium-sized meeting rooms, multi-function halls, churches,

and various occasions to enhance the sound.

◎ ES-610 speaker clean and simple appearance, round wrapped net design, highlight the product grade high-end atmosphere, designSteady and do not break elegant beauty. It Can do a the main sound reinforcement andf also can be used for auxiliary sound complement, two way design, ultra-high cost performance.

Specification：

System Type: 2-way 1×10'' full-range speaker

HF Transducer: 1×1'' throat \ 1×1'' voice coil

LF Transducer: 1×10'' woofer\ 1×2'' voice coil

Frequency Response(±3dB): 60Hz-18KHz

Coverage Angle (HXV): 90°x50°

Sensitivity (1W @ 1m):  95dB

SPL: continuous: 118dB, peak: 124dB

Nominal Impedance: 8Ω

Rated Power: 200W (RMS),400W(PEAK)

Enclosure Material: 15mm birch plywood

Suspension: 15× M8 threaded mounting points

Grille: molded hexagonal grill

Connectors: 2× NL4SPEAKON

Connection: 1+,1-

Dimensions (WxHxD):  327x520x320mm

Packaging dimensions:  385x577x372mm

Net Weight: 13.2KG
