Position : Home>Product Details>NS Nature Sound Series

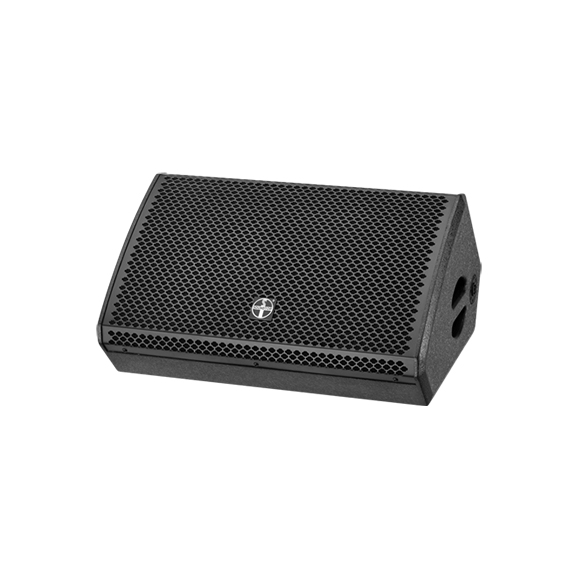

NS-112M Return speaker

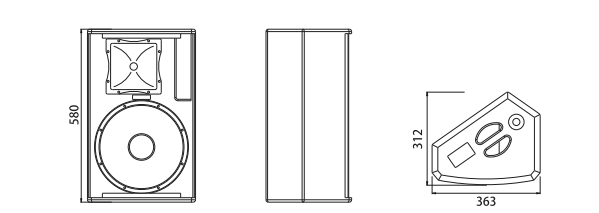

Layout：
Product features：
◎ Small and medium-sized meeting rooms, multi-function halls, churches, and various occasions to enhance the sound.
◎ NS-112M is a small, two-channel passive stage speaker maritor. The surface is wear-resistant spray paint treatment, 90° x60° coverage Angle to achieve uniform and smooth axial and off-axial response, frequency division technology is strictly designed to optimize frequency response, improve the mid-frequency voice performance.
Specification：
System Type: 2-way 1×12'' full-range speaker
HF Transducer: 1×1'' throat \ 1×1.7'' voice coil
LF Transducer: 1×12'' woofer\ 1×3'' voice coil
Frequency Response(±3dB): 60Hz-20KHz
Coverage Angle (HXV): 90°x60°
Sensitivity (1W @ 1m): 98dB
SPL: continuous: 126dB, peak: 132dB
Nominal Impedance: 8Ω
Rated Power: 400W (RMS),800W(PEAK)
Enclosure Material: 15mm birch plywood
Grille: molded hexagonal grill
Connectors: 2× NL4SPEAKON
Connection: 1+,1-
Dimensions (WxHxD): 63x580x312mm
Packaging dimensions: 500x677x379mm
Net Weight: 16.5KG
-
