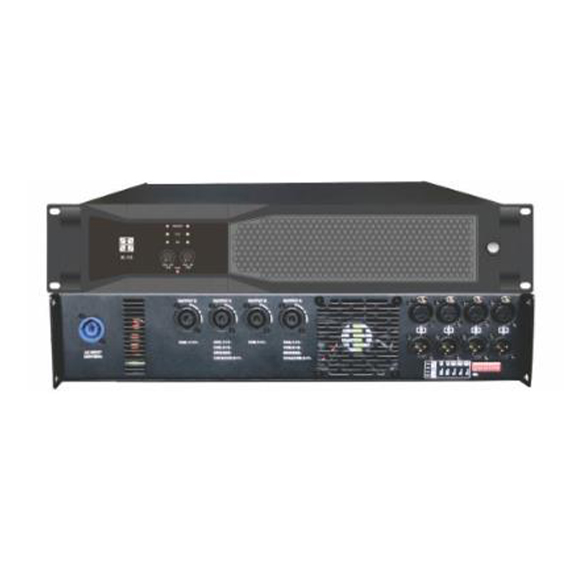

K-10


Characteristics:

1. The traditional AB technology amplifier achieves high fidelity sound reproduction, and the sound is basically not distorted by circuit operation

2. Strong low-frequency penetration, medium to high frequency permeability, and strong transient response ability. Equipped with a thorough protection circuit and built-in clipping limiter, it enhances the protection of the field sound device.

3. The total efficiency of the power amplifier using Level 3 H-class technology is up to 72%, which can provide higher power output, smaller chassis space, and lighter weight.

4. Equipped with overheating, overload, short circuit, high-frequency overload output DC clipping limit and fuse protection

5. Specially selected power tubes with excellent matching performance make the voice delicate, sweet, round, low noise, high-quality, and strong impact resistance.

6. Equipped with an excellent convective cooling system, the air flow inlet is simple and direct, and the heat dissipation function is good, ensuring that the equipment can work stably for a long time.

7. Adopting advanced noise reduction design, the power amplifier operates with extremely low noise.

8. Adopting a dedicated audio ring transformer to provide power reserve for the amplifier that exceeds 3 times the rated power, it has excellent overload capacity.

9. The fashionable aluminum alloy panel and display screen are perfectly combined, with a novel appearance design that is suitable for standard cabinet installation.

Specifications

MODEL:

K-10

K-15

Stereo power 8 Ω：

4×1000W

4×1500W

Stereo power 4 Ω：

4×1800W

4×2600W

Bridge mono power 8 Ω

2×3000W

2×4200W

Gain:

36db

Out put circuit type:

Class D

Frequency Response:

20Hz-20Khz

THD:

<0.1%

Slew Rate:

≥25Vp/s

Damping Factor:

≥400

Dynamic Range:

≥95dB

Signal/Noise Ratio:

≥105dB(A-weighted Typical value )

Sensitivity:

26dB/29dB/32dB/36dB

Input Impedance:

Balanced 20K/ unbalanced 10K

Protection Function:

Voltage limit, overheating, short circuit, DC, zero impact on/off

Detailed informationPDF
